The waste water goes through the suspending media of MBBR reactor, form the biological membrane on the surface of the media gradually, with the action of the microbial on the biological membrane, the waste water is purified. The media can move freely in the reactor with the mixing of the water; for the aerobic reactor, the aeration will make the media move; for the anaerobic reactor, mechanic mixing will make the media move. Our MBBR media provide high surface area for the MBBR process, has better treatment effect compared to traditional media.
Economical very attractive
Compact (saves space)
Financial savings on discharge costs
Quality improvement – nitrogen and BOD removal
Minimize operator attention and process complexity
Future expansion
Handles high shock load

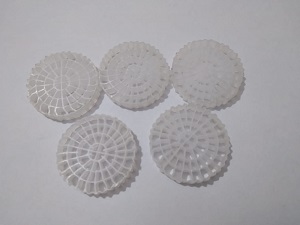

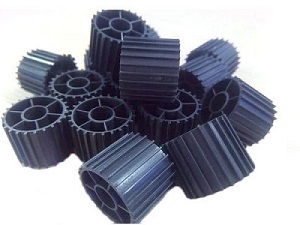

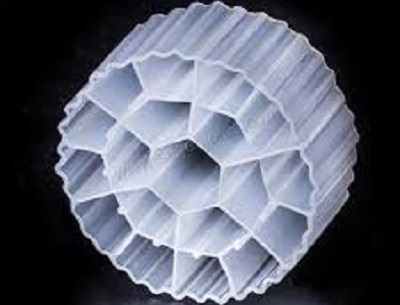

| Characteristics | MBBR MEDIA 4X25MM | MBBR MEDIA 12X25MM | MBBR MEDIA 16X22MM |
|---|---|---|---|
| Media Height | 4 mm | 12 mm | 16 mm |
| Media Width | 25 | 25 | 22 |
| MOC | Virgin HDPE | PP/HDPE | PP/HDPE |
| Structure /Shape | Circular Cylindrical with internal fins | Circular Cylindrical with internal fins | Circular Cylindrical with internal fins |
| Density | 0.90 – 0.98 gms/cm3 | 0.90 – 0.95 gms/cm3 | 0.89 – 0.94 gms/cm3 |
| Void Area | >95 | >95 | >95 |
| Media Fill Range | 30 – 70 % | 30 – 70 % | 30 – 70 % |
| PSA/TSA Ratio | 79 | 79 | 79 |
| Operating Temp Range | >80 o C | >80 o C | >80o C |
| BOD5 Oxidation Efficiency gBOD5/m3.D |
2000- 10,000 | 2000- 10,000 | 2000- 10,000 |
| Nitrification Efficiency gNh4-N/m3.D |
500 – 1400 | 400 – 1200 | 400 – 1200 |
| COD Efficiency gCOD /m3.D |
2,000 – 15,000 | 2,000 – 15,000 | 2,000 – 15,000 |
| Colour | White | White / Black | White / Black |
| Packing | 13 or 11 kg/bag | 13 or 11 kg/bag | 13 or 11 kg/bag |
